Good Quality Consumer Electric PCB Assembly

UL&IPC Standard & ISO
  • PCB Layer:

    2 L
  • Thickness:

    1.6mm
  • PCB Size:

    80*120mm
  • Min Size:

    0402
  • Min Pitch:

    0.3 mm
  • Application:

    Consumer Electronics
  • Product Detail

Item

Speci.

PCB SMT Min thickness

T0.1mm

PCB SMT Max thickness

T4.5mm

PCB SMT Min Length

L3mm,

PCB SMT Min Width

W3mm

PCB SMT Max Length

L 1200mm

PCB SMT Max Width

W 500mm

Min panel size

0.3mm*0.2mm

Max panel size

200mm*125mmSMD

component thickness

6.5mmT15mm

Min pin space

0.3mmPitch0.4mm

Min ball space

0.3mmPitch0.5mm

PCB DIP Min thickness

T0.8mm

PCB DIP Max thickness

T2mm

PCB DIP Min Length

L50mm

PCB DIP Min Width

W30mm

PCB DIP Max Length

L1200mm

PCB DIP Max Width

W500mm

Inter package

Vacuum/ Antistatic Bag

Outer package

Carton

SMT capacity

Four Million point/day



PCB Manufacturing Services


As one of the leading Printed Circuit Board manufacturers based in China, Ucreate has been offering international companies of all sizes with high-quality PCB prototype to production services at a fair price for eight years. To make professional and advanced circuit boards, we're committed to adhering to the strictest standards during the PCB manufacturing process. We're fully compliant with the ISO 9001:2008 quality management system.

- Save money&time! Achieve peace of mind!
- A professional and trustworthy PCB Prototype manufacturer.
Fastest PCB Prototype.
- One-stop solution for various PCB& SMT Stencil.
- Low cost for simple PCB.
- Affordable price for high-tech PCB.
- Minimum orders 1pcs.
- 24-hour online customer service.
- Professional PCB engineer for one-to-one service.
- Shipment on time.
- Guarantee good service and quality from PCB quotation to delivery.


PCB Assembly Services


To deliver real value and convenience to our PCB fabrication clients, we expand our business to components sourcing and turnkey PCB assembly services ranging from the prototype, low-to-middle volume to high volume up to 1 million pcs. We can mount components on circuit boards using surface mount technology (SMT),through-hole technology (THT), and manual insertion:

- High-quality assembly services with short lead times
- No minimum order
- No additional charge for stencils
- Free DFM Check
- 100% AOI test and X-Ray test for BGAs package
- Function tests & IC programming based on custom requirements

All boards are produced according to IPC-6012 standards and inspected according to IPC-A-600 in the latest version. Our products are widely applied in communications, industrial control, power electronics, medical equipment, security electronics, consumer electronics, LED, etc. More than 90 percent of them were exported to Europe, North America, South America.

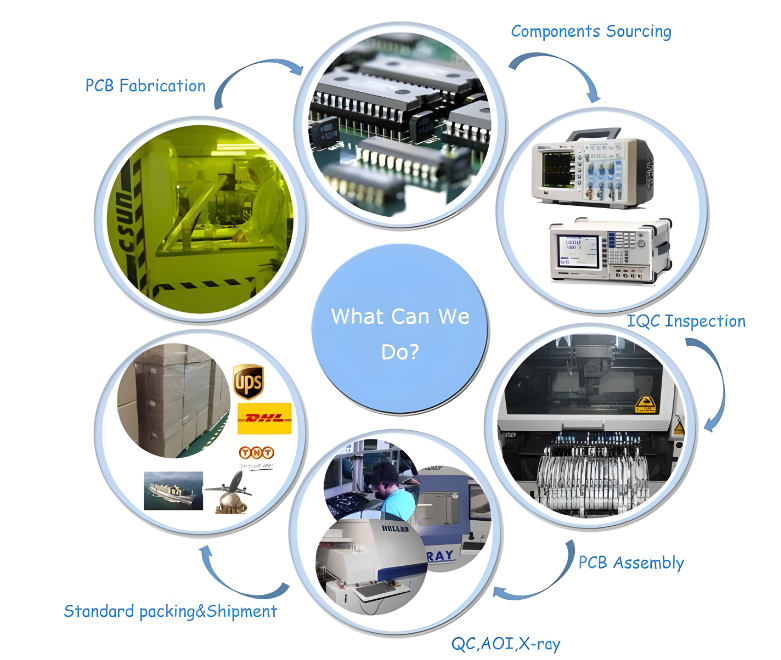

One-stop Service Include


PCB Prototype

Quick Turn PCB

Single-Sided PCB

Double-Sided PCB

Multilayer PCB

Rigid PCB

Flexible PCB

Rigid-Flex PCB

LED PCB

Aluminum PCB

Metal Core PCB

Thick Copper PCB

HDI PCB

BGA PCB

High TG PCB

PCB Stencil

Impedance Control PCB

PCB Assembly

High-Frequency PCB

Bluetooth Circuit Board

Automotive PCB

USB Circuit Board

Halogen-Free PCB

Antenna PCB
